IntegraRack® IR MultiBallast™ DB Series Lower Offset Bracket

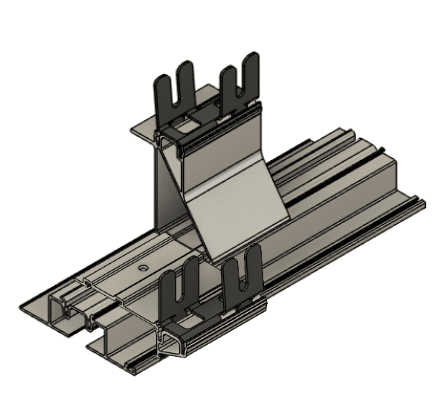

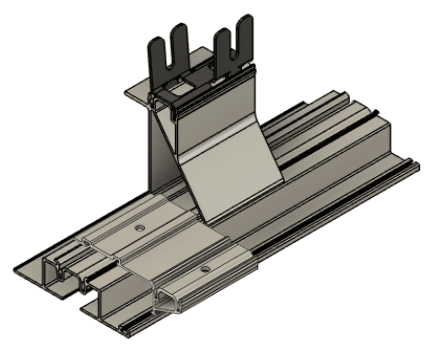

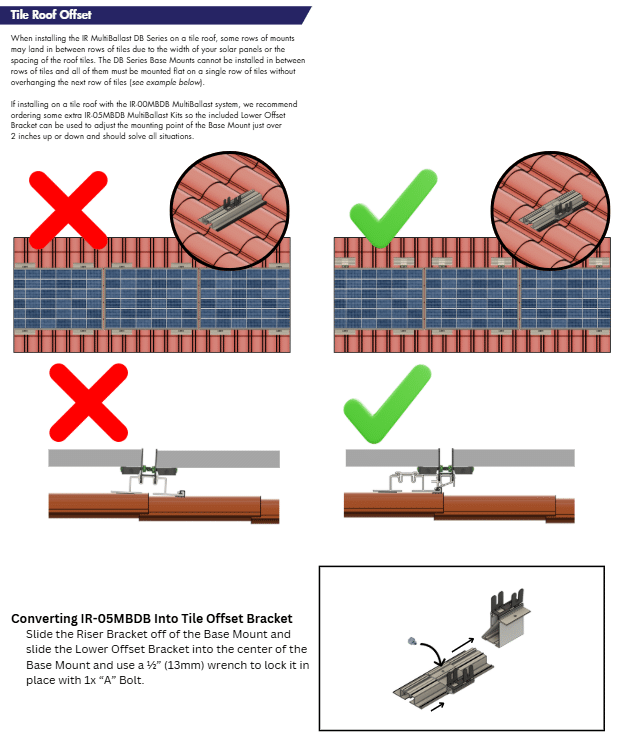

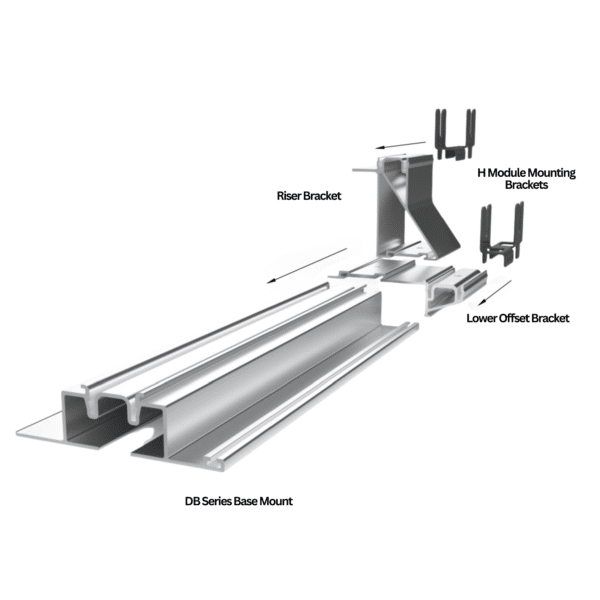

The Lower Offset Bracket can be used as an additional mounting point for micro-inverters/solar optimizers, or to offset the solar panel mounting point when installing the IR MultiBallast system on tile roofs. This bracket easily slides onto the DB Series Base Mount and can be locked in place with a single bolt.
*This bracket is included with the IR-05MBDB MultiBallast Kit with H Module Mounting Brackets pre-installed
*H Module Mounting Brackets cannot be removed after install
*Not required for all MultiBallast Installations
*Only intended for use with the IR MultiBallast DB Series
– What’s Included?

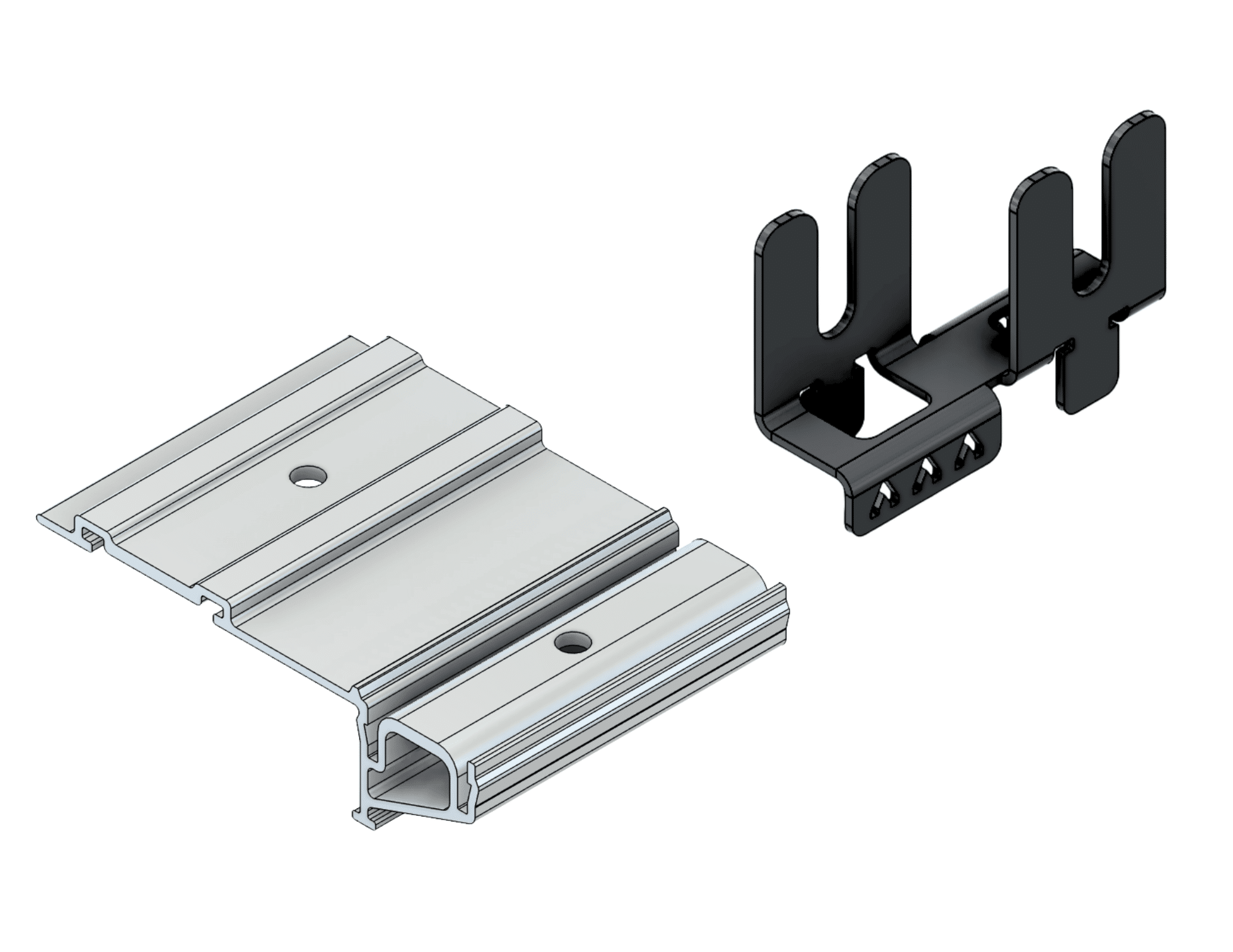

- 1x MultiBallast DB Series Lower Offset Bracket
- 1x H Module Mounting Bracket
- 2x 10mm Bolts
– What Tools are Required?
- 1/2″ (13mm) ratcheting wrench for the bolts or for the mounting of solar panels
- Hammer (Optional for H Module Mounting Bracket Install)
– Lightning Fast Assembly & Installation

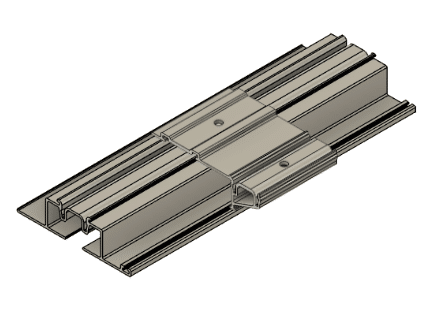

- Simply slide the bracket onto the MultiBallast DB Series Base Mount and lock it in place using a single 10mm bolt

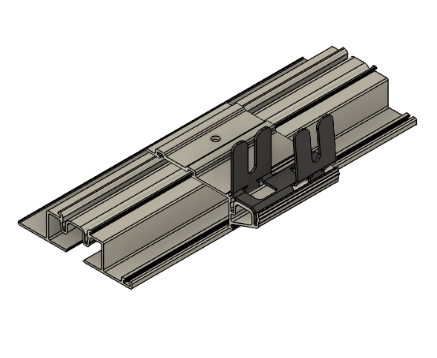

- Use a hammer to tap the H Module Mounting Bracket into the slot (optional for offset solar panel mounting)
- Install micro-inverters/solar optimizers using the 2nd 10mm bolt (H Module Mounting Bracket NOT required)
– Strong, Simple Design
- This bracket is crafted from a single piece of extruded aircraft grade aluminum.
- The simple compact design makes each bracket extremely durable.
