Description

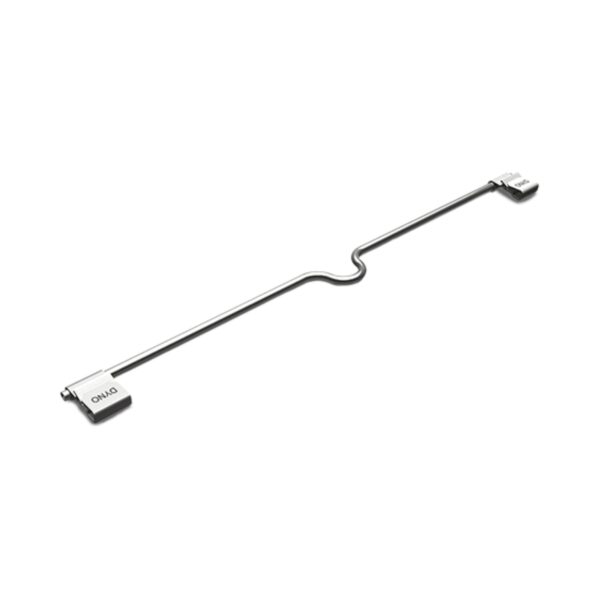

The DynoRaxx® DynoBond® is a proprietary, UL recognized design that allows the DynoBond® to be used as a bonding jumper between modules and rows; making the module frames the medium for the equipment ground path.
The DynoBond® replaces the conventional method of installing one ground lug per solar module and running a solid six gauge copper wire bonding the modules. The DynoBond® is engineered for commercial and residential applications. It was made to save solar installers time and money on installation.
No Tools Required
- DynoBond® is pushed onto the bottom flange of the solar module
- Supports flange thickness from 1.2mm to 3.1mm
Clean
- Wire is virtually hidden when installed
Corrosion Resistant
- Stainless Steel clips and Tin-Plated Copper Wire paired for reduced electrochemical potential
Superior Design
- UL recognized to 467 and 2703
Available Wire Lengths
- 8″ Bonding Jumper
- 12″ Bonding Jumper
