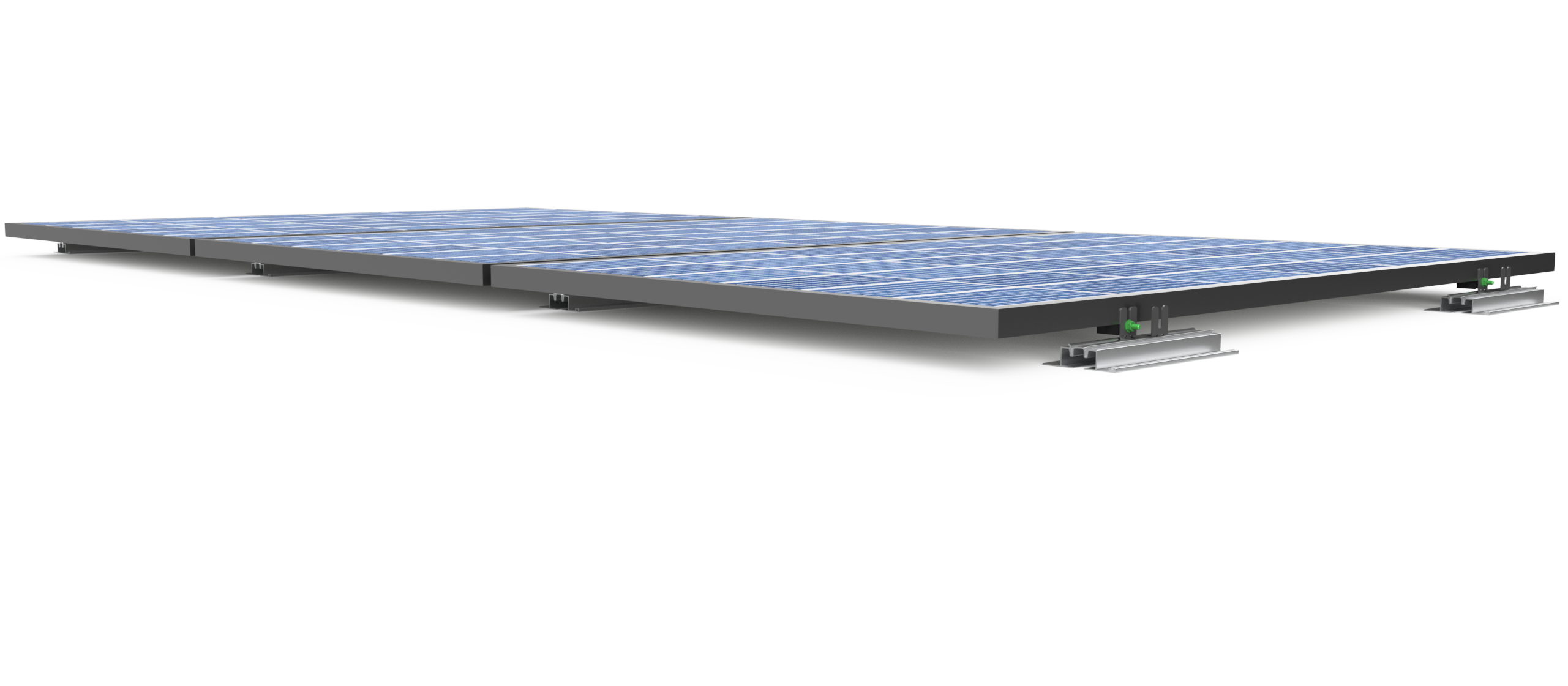

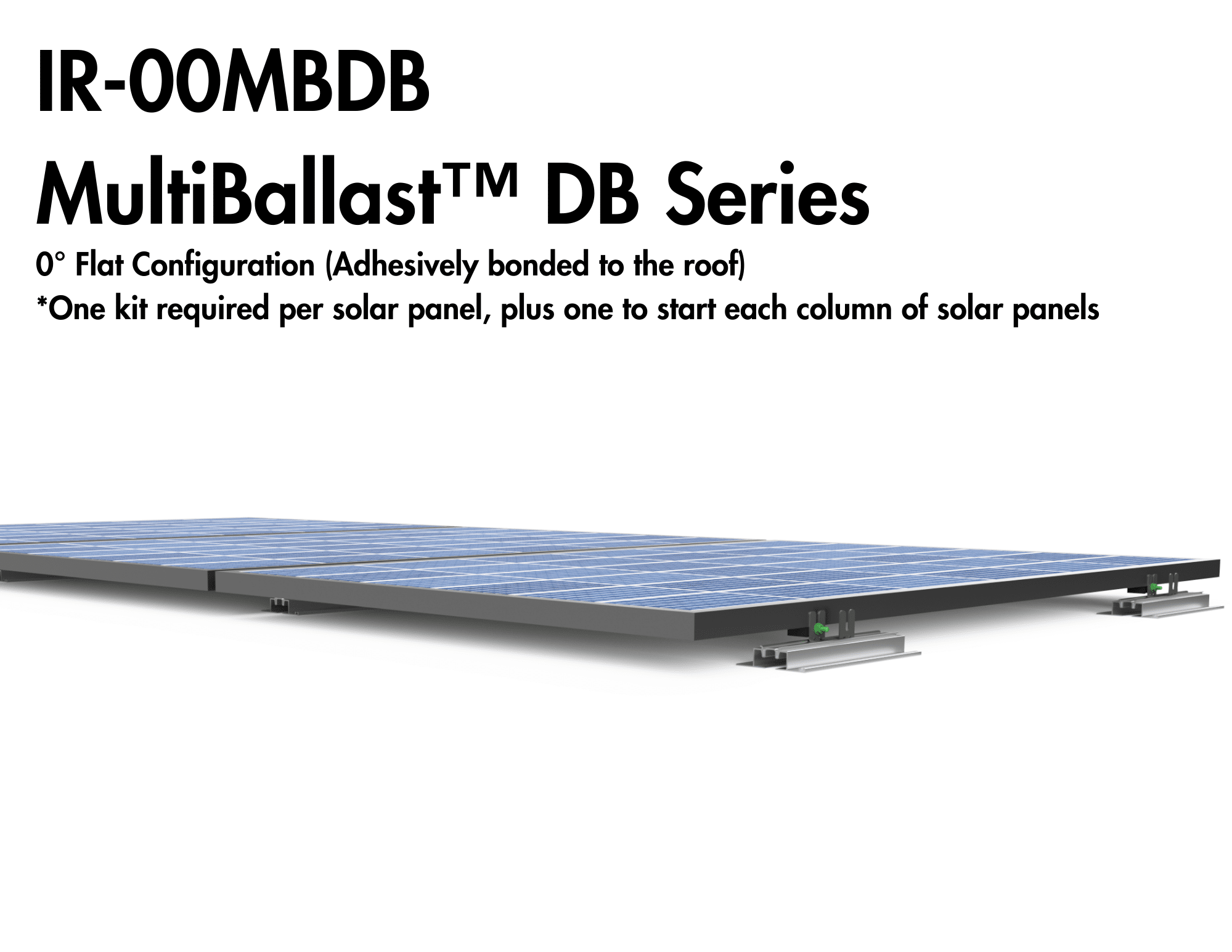

IntegraRack® IR-00MBDB MultiBallast™ DB Series Modular Racking System Kit – 0° Flat Configuration
The IR MultiBallast DB Series solar panel racking system is a low profile alternative to the standard MultiBallast system, offering many of the same great benefits, with greater versatility for roof mounting at a lower cost. This modular system is capable of mounting any size solar panel on almost any roof surface, using SikaFlex 1A Polyurethane Adhesive (sold separately).

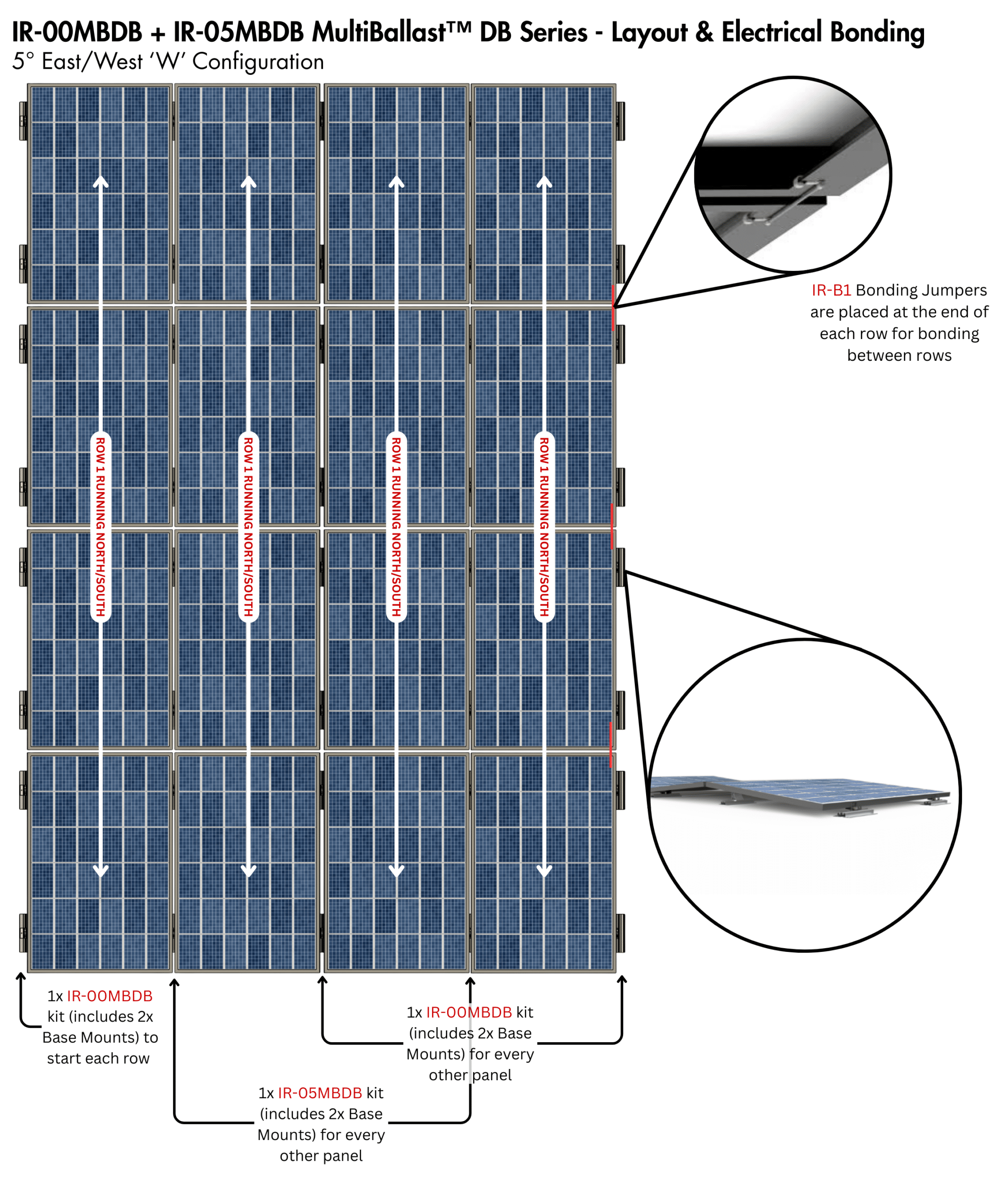

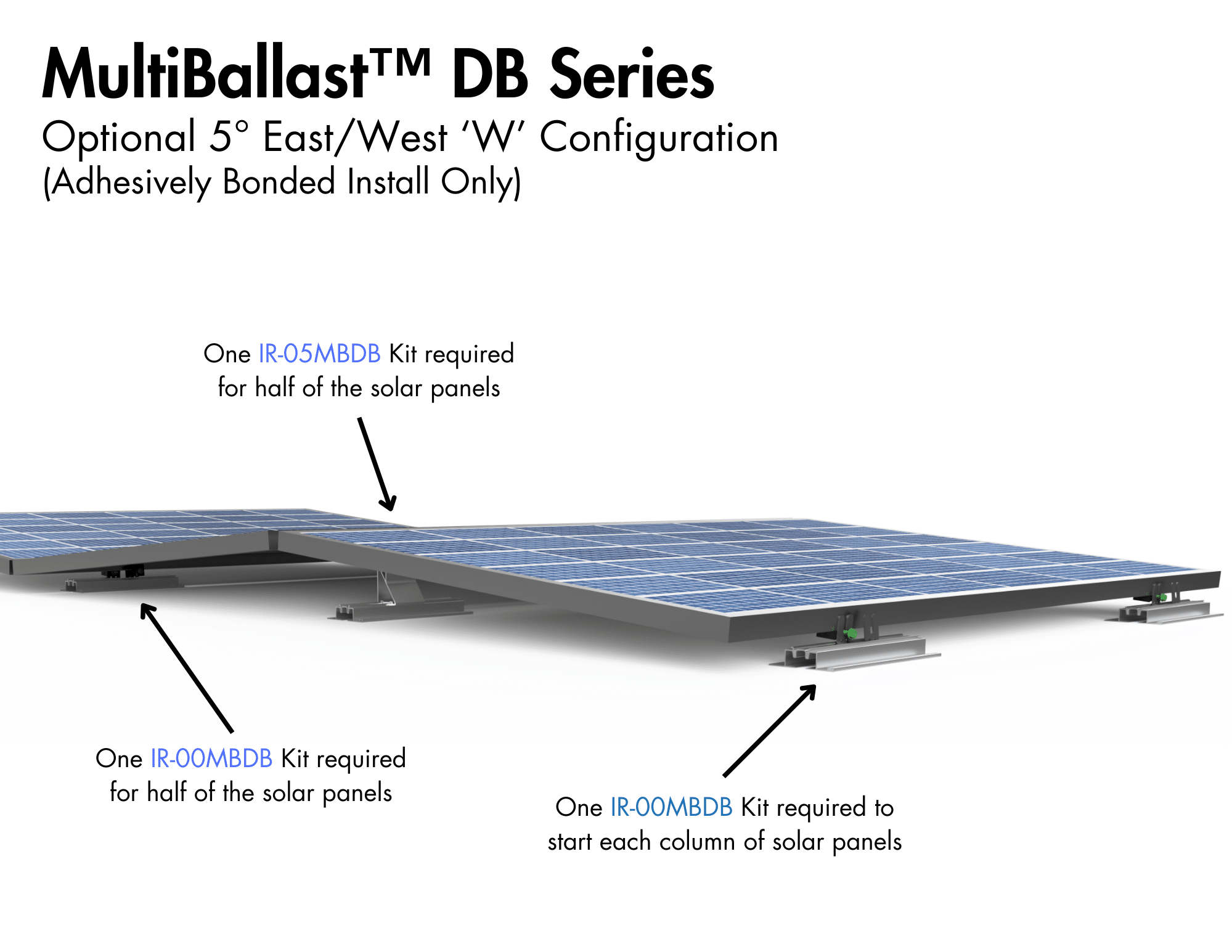

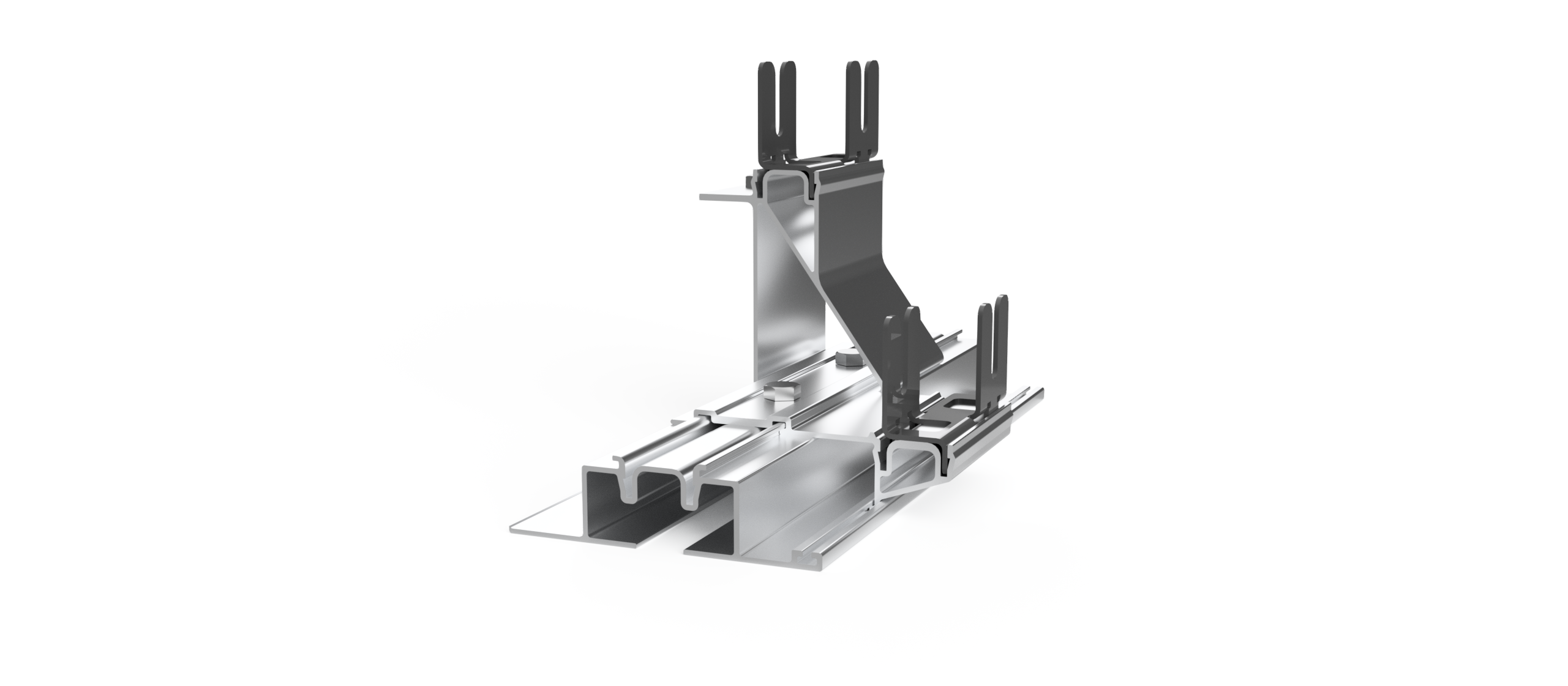

This system can also be used with the IR-05MBDB to create a 5° East/West ‘W’ Configuration (requires 1x IR-00MBDB Kit for half of the panels, 1x for the other half of the panels + 1x IR-00MBDB Kit to start each column of panels).

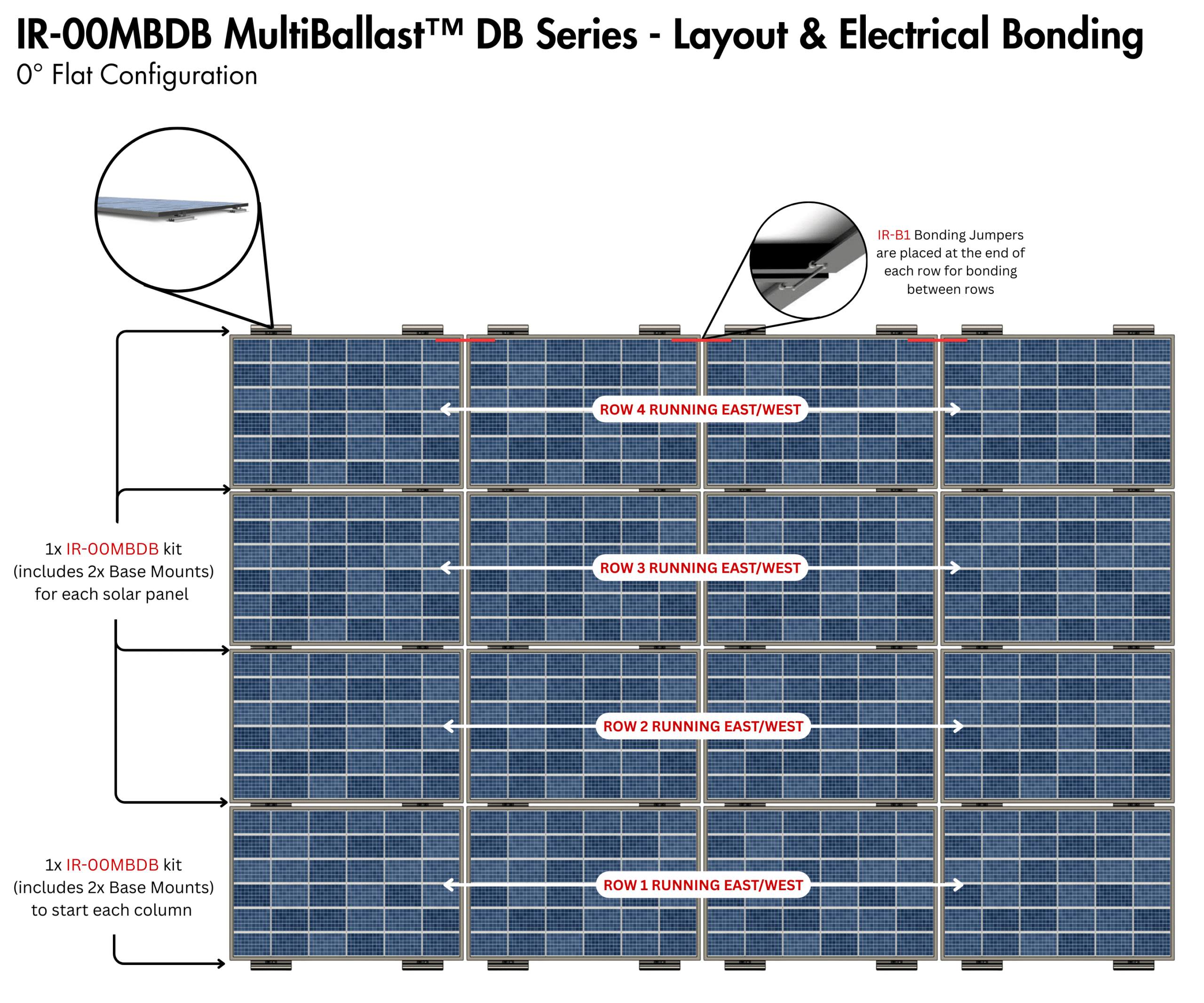

*One additional kit is required to start each row of solar panels
*IntegraRack IR-F2 Flange Clamp Bonding Brackets are INCLUDED
– How many kits do you need?
(Number of Solar Panels) + (Number of Rows) = (Number of Kits Needed)
– What’s Included?

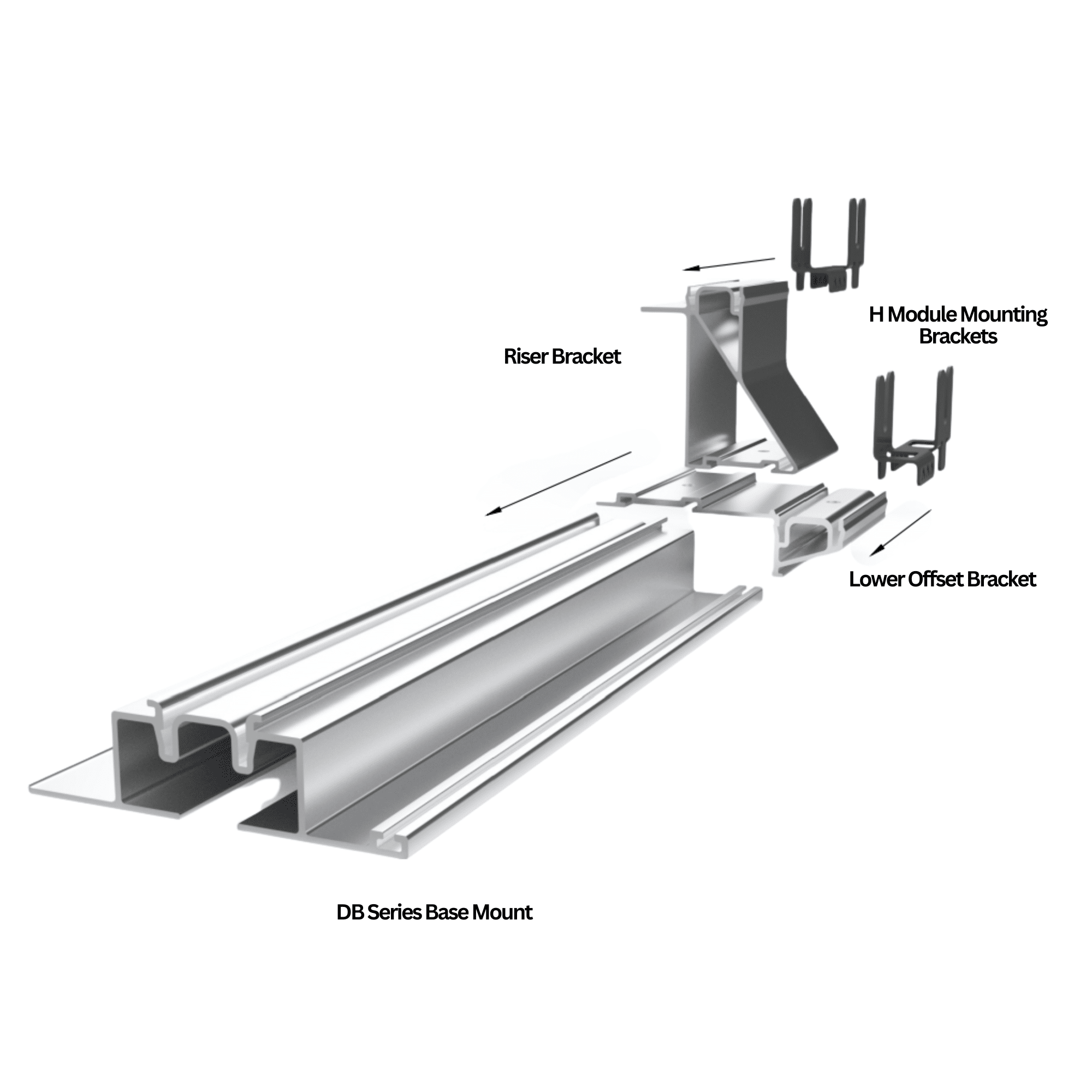

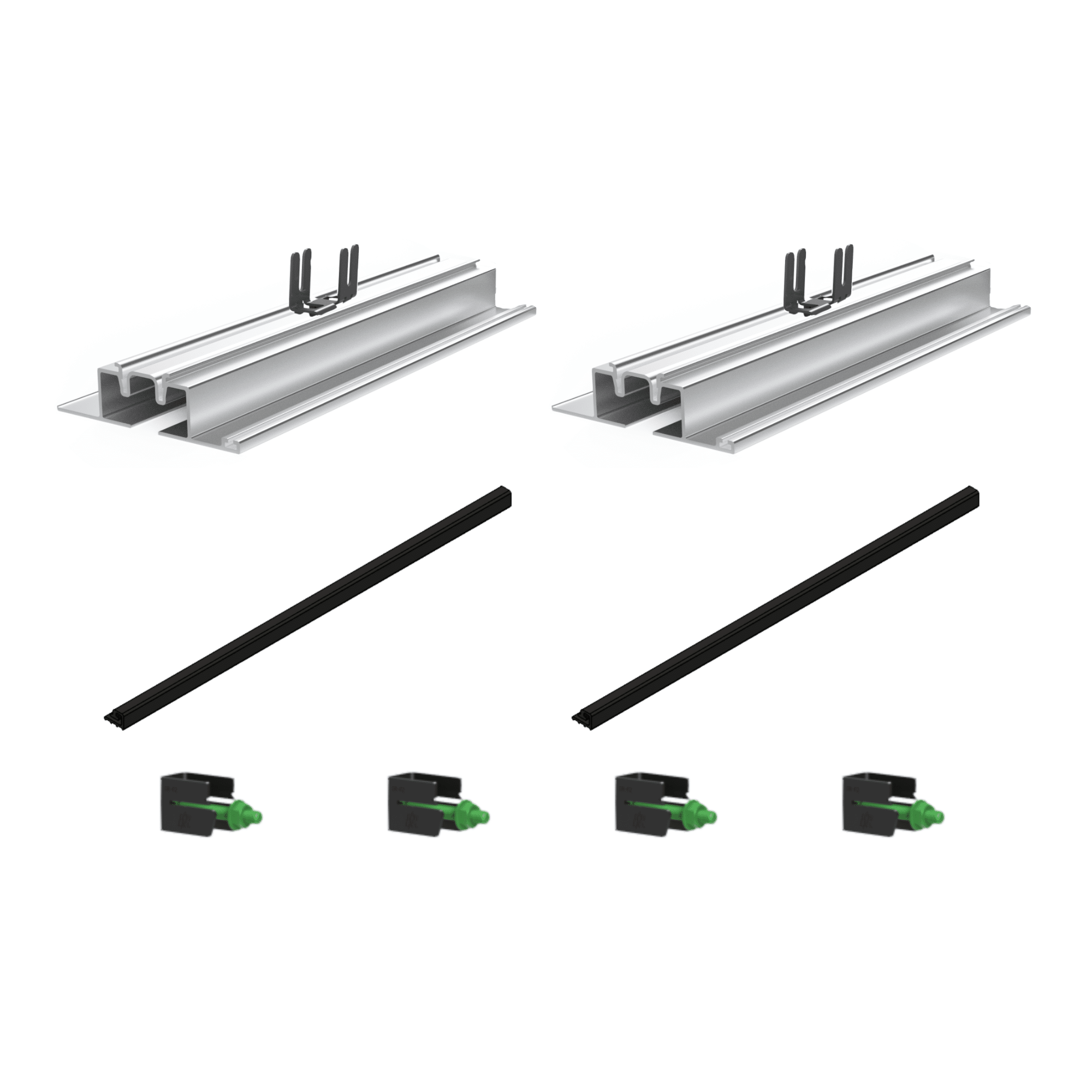

- 2x MultiBallast DB Series Base Mounts (w/ H Module Mounting Brackets Installed)
- 2x Full Length Rubber Grip Strips
- 4x IR-F2 Solar Module Flange Clamp Bonding Brackets
– What Is NOT Included?
- SikaFlex 1A Polyurethane Adhesive
- IR-B1 (8″) Bonding Jumper (Optional for bonding between rows of panels)
– What Tools are Required?
- 1/2″ (13mm) ratcheting wrench for mounting solar panels
- Caulk gun for SikaFlex 1A polyurethane adhesive
- Line chalk
- Tape measure
– Roof Compatibility

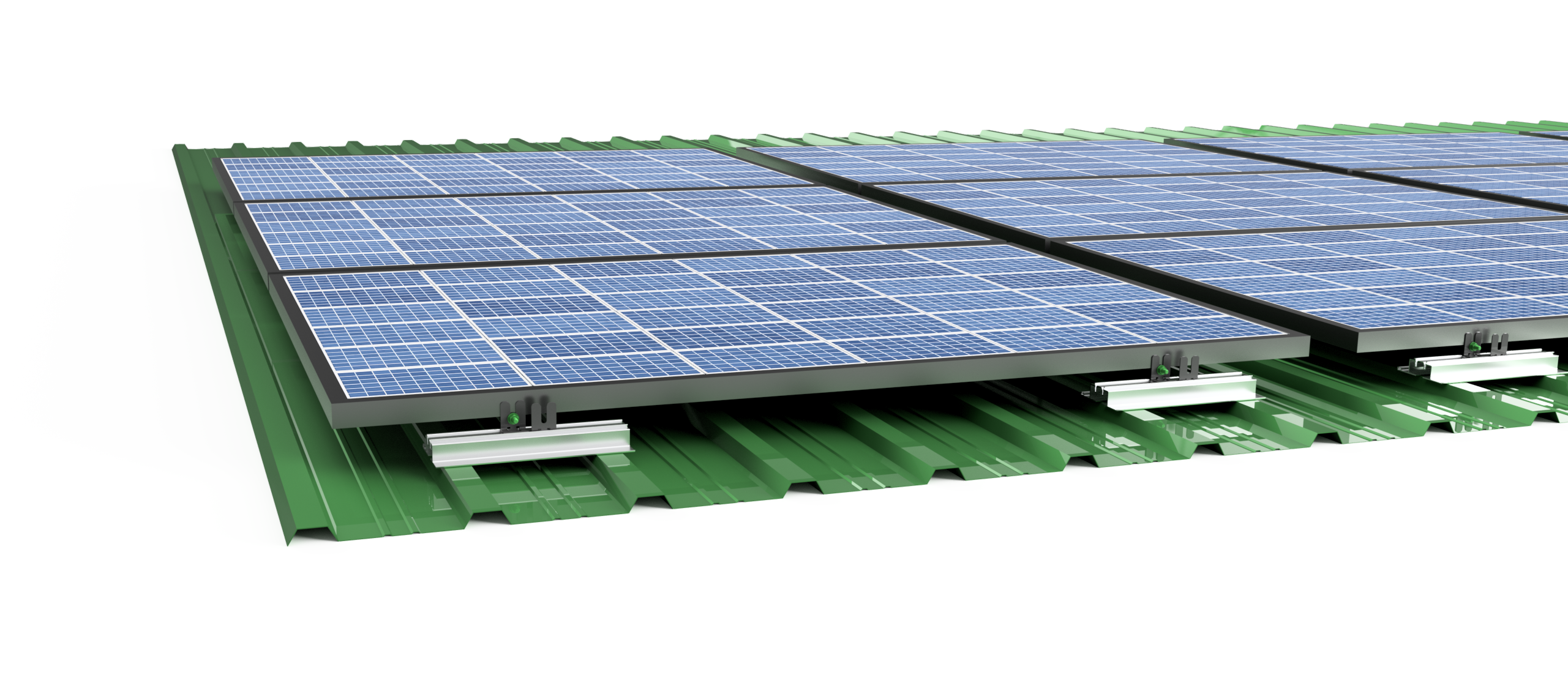

- Corrugated Metal Roofs

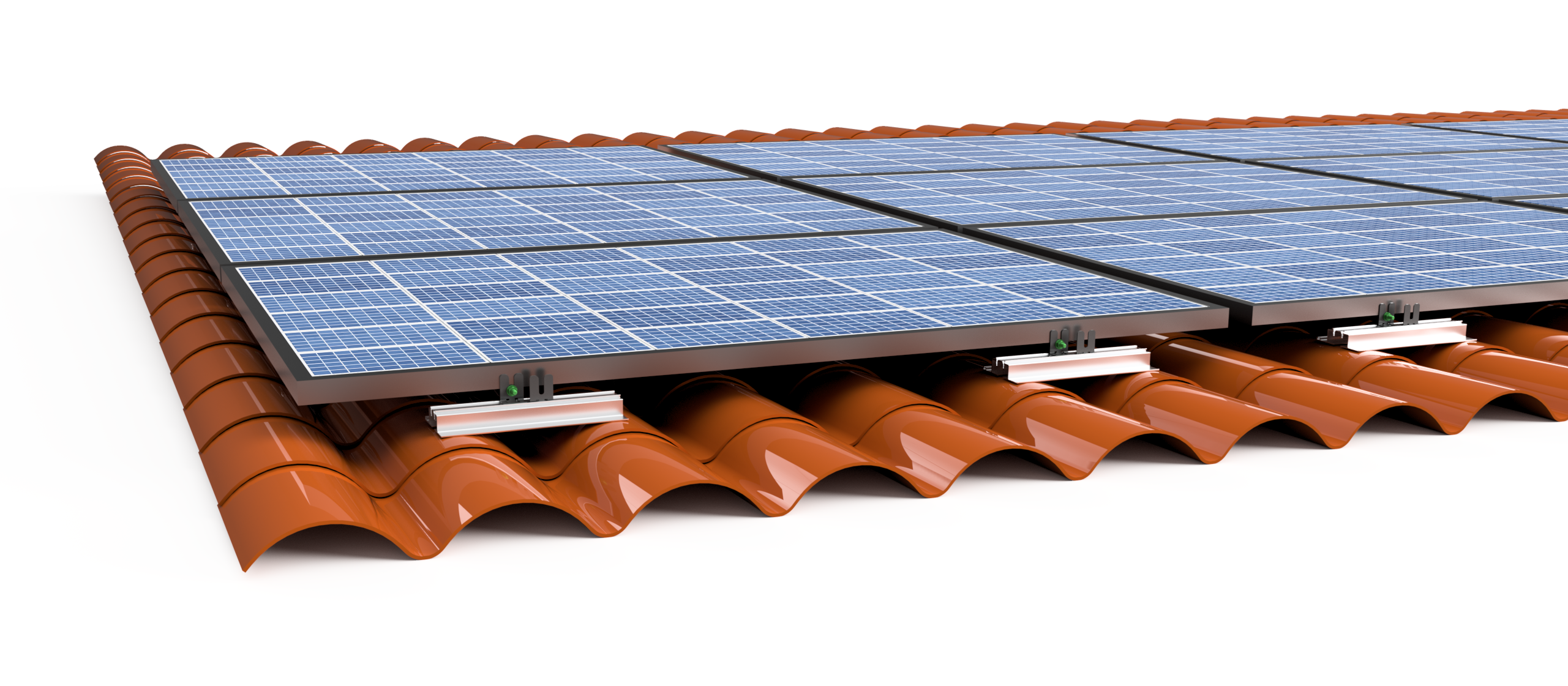

- Clay / Concrete / Composite / Tile Roofs

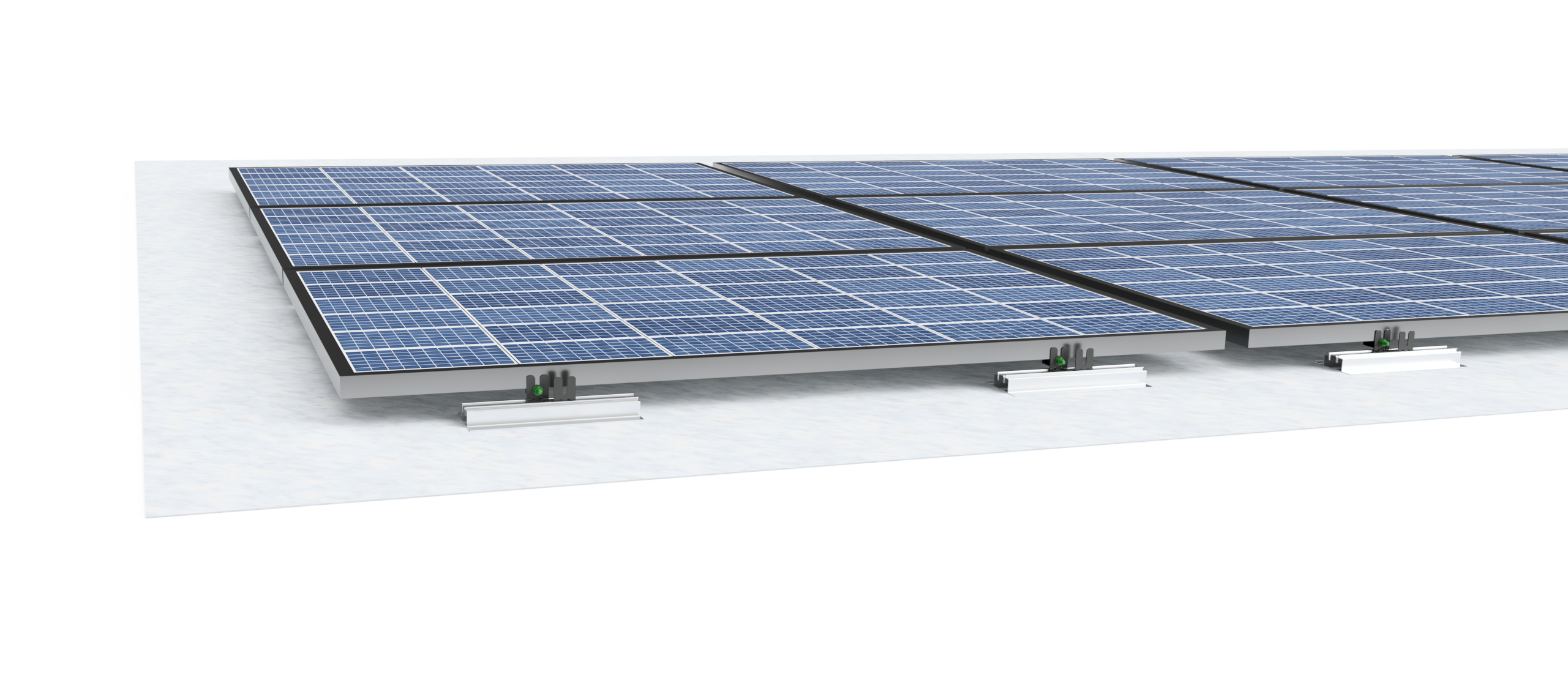

- TPO / Concrete / Asphalt Roofs

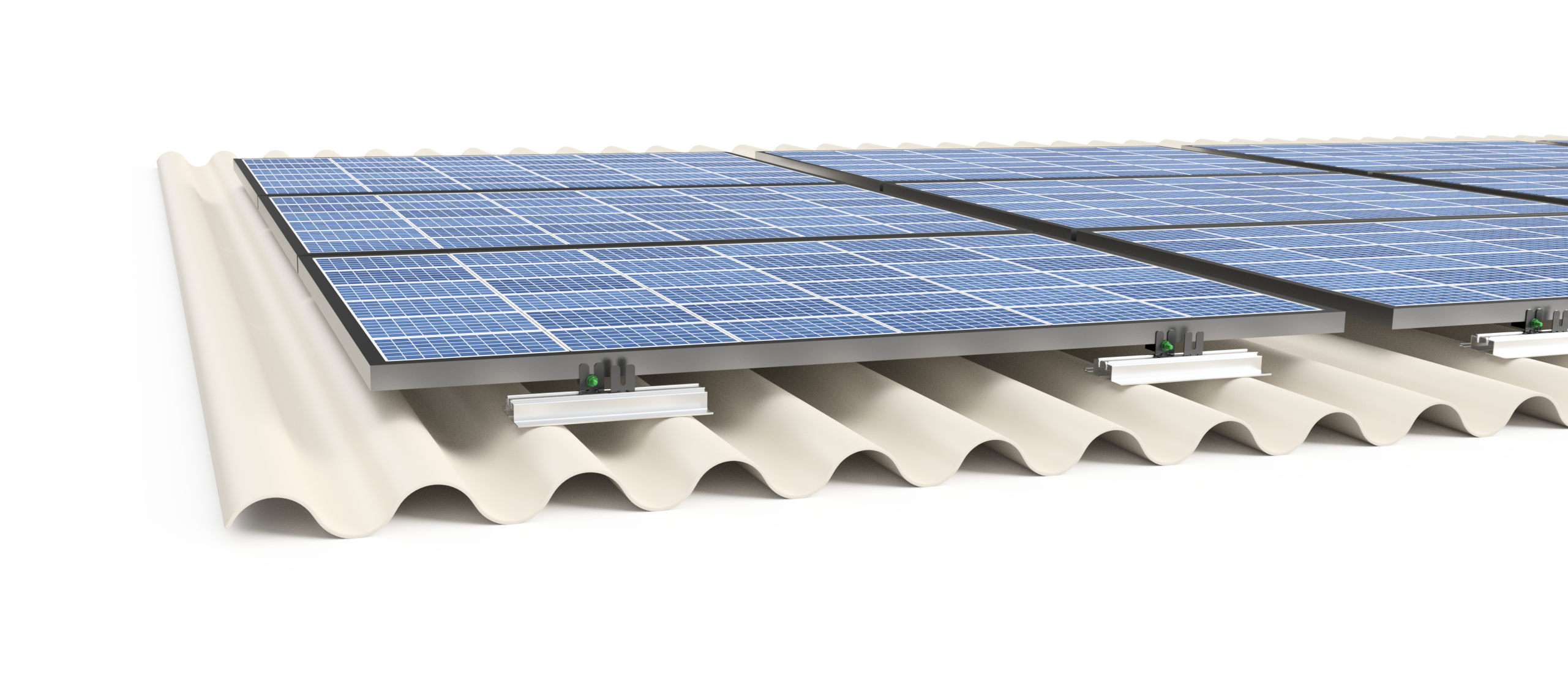

- Asbestos / Cement Board Roofs
– Lightning Fast Assembly & Installation
- Each mount can be assembled in 10 seconds or less.
- Assembly only requires attaching the rubber grip strips on each mount (no tools required).
- Installation only requires placing mounts on the roof and adhesively bonding them to the roof surface.
– Strong, Simple Design
- Each mount is crafted from a single piece of extruded aircraft grade aluminum.
- The simple compact design makes each mount extremely durable.
– Easy Solar Panel Mounting
- Mounting solar panels using the included IR-F2 Solar Module Flange Clamp Bonding Brackets is fast and easy.
- Each IR-F2 can easily drop into the open slot of the H Module Mounting Bracket and all you need to do is tighten the serrated nut with a 1/2″ (13mm) wrench.
– Low Profile
- The IR-00MBDB MultiBallast DB Series mounts the solar panels roughly 2″ off the roof surface.
– UL 2703
This product conforms to UL 2703 Mechanical and Bonding requirements.
