IntegraRack IR EarthScrew™ Mounting Kit (10 Pack) for BallastRack Frames

Description

IntegraRack IR EarthScrew™ Mounting Kit For All BallastRack™ Systems (10 EarthScrews for up to five BallastRack frames or four solar panels)

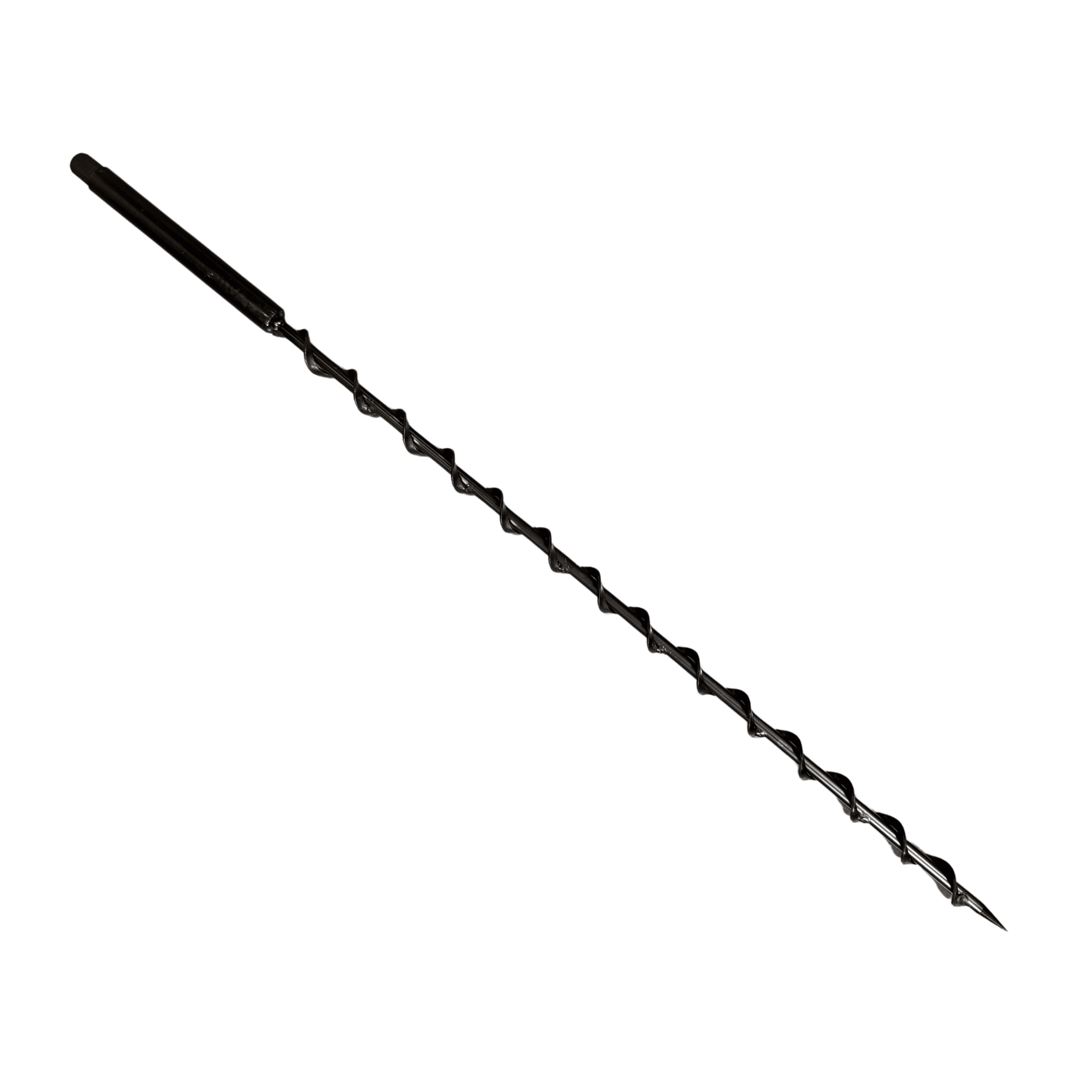

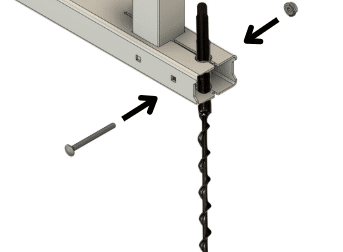

The IR EarthScrew™ Kit includes (10) specially designed 30″ screws for easy anchoring of the BallastRack frames into the ground with incredible strength. Each IR EarthScrew is rated for up to 1,000 pounds of uplift (see IntegraRack’s Stamped Engineering & Datasheets) and the base tube of each BallastRack frame is designed to clamp around and bite into each screw, allowing for easy leveling of the system.

Notice

• One EarthScrew must be tested at installation site to ensure it can withstand 1,000 lbs of uplift
• Kit is designed to mount five BallastRack frames or one row of four solar panels
• Not intended for use with other IntegraRack mounting kits

Building Permit Requirements

When installing the BallastRack system with the IR EarthScrew Mounting Kit, a building permit may or may not be required (see documentation)

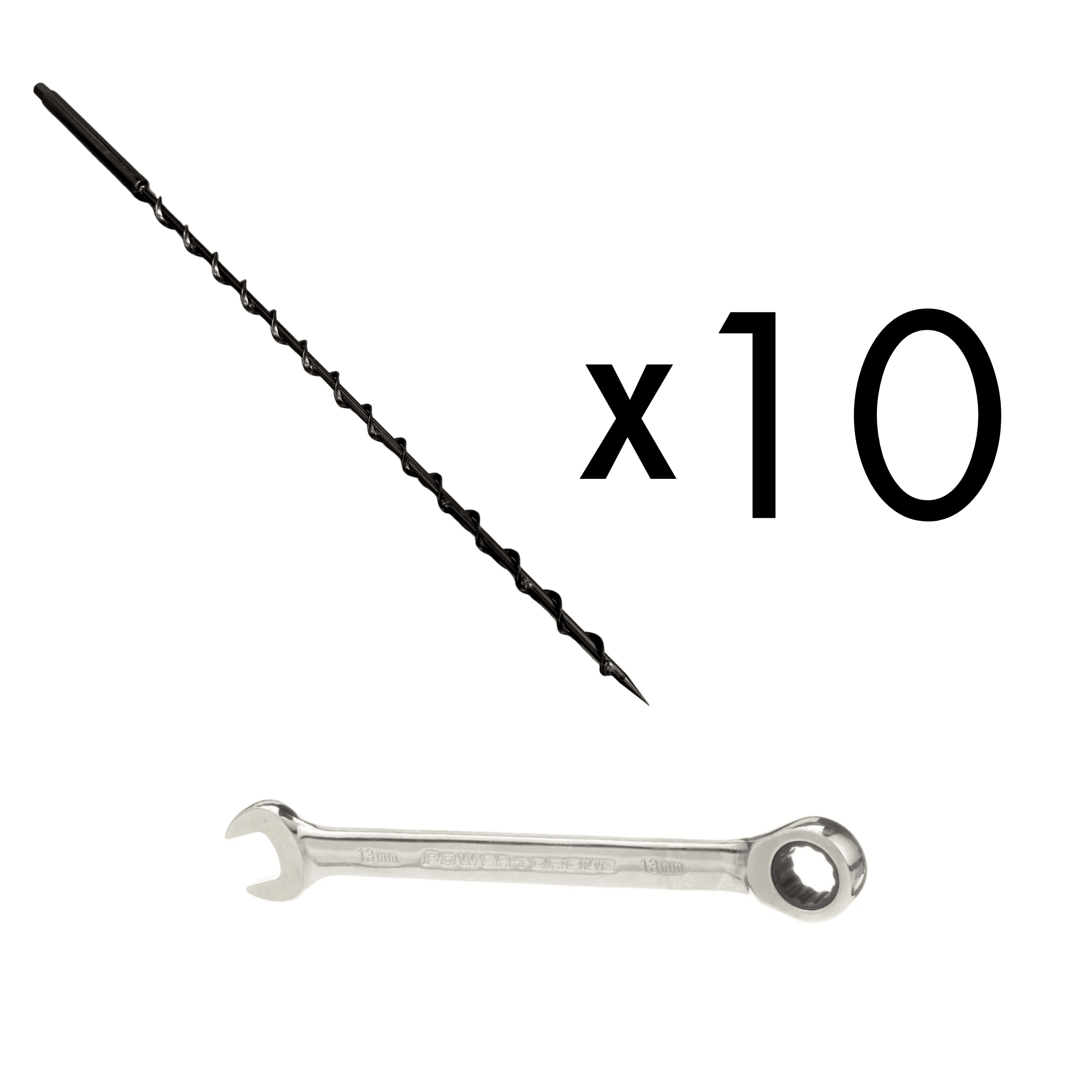

• (10) IR EarthScrews
• (1) High Quality Ratchet Wrench (for solar panel mounting only)

Recommended Tools

• SDS Max Hammer Drill (Optional)
• 1×30″ SDS-Max Speed-X Carbide Rotary Hammer Bit for Concrete Drilling
