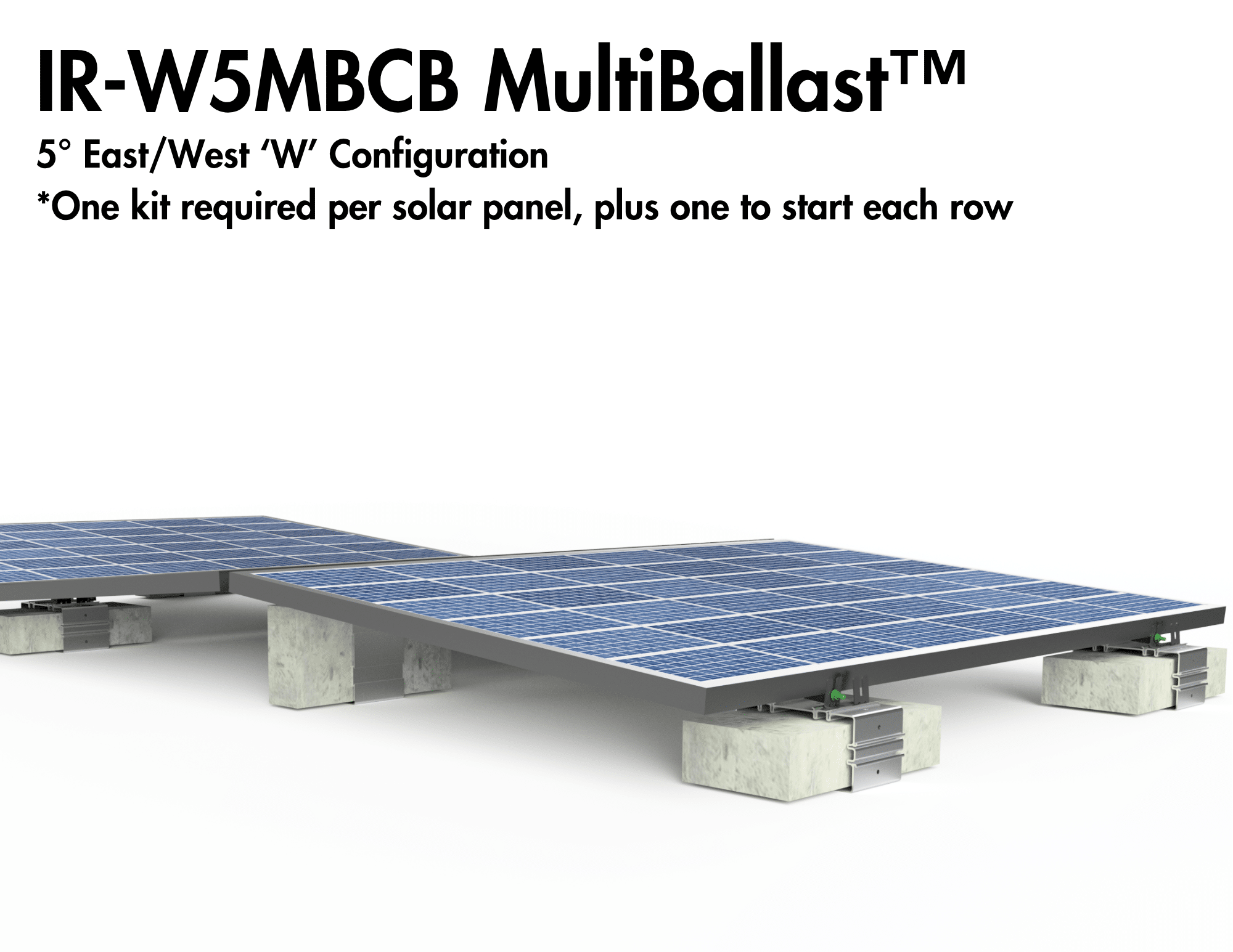

IntegraRack® IR-W5MBCB MultiBallast™ Modular Racking System Kit – 5° East/West ‘W’ Configuration
The IR-W5MBCB MultiBallast configuration can be used for ballasted mounting on flat roofs or on the ground, and is designed to rack any size solar panel using just a common CMU block for weight. This kit can be used to rack solar panels in a 5° East/West ‘W’ configuration or as a 0°flat configuration. Only one kit is needed per solar panel installed, plus one additional kit to start each row of solar panels and each kit includes all of the hardware and solar panel bonding and mounting clamps.
*One additional kit is required to start each row of solar panels
*IntegraRack IR-F2 Flange Clamp Bonding Brackets are INCLUDED

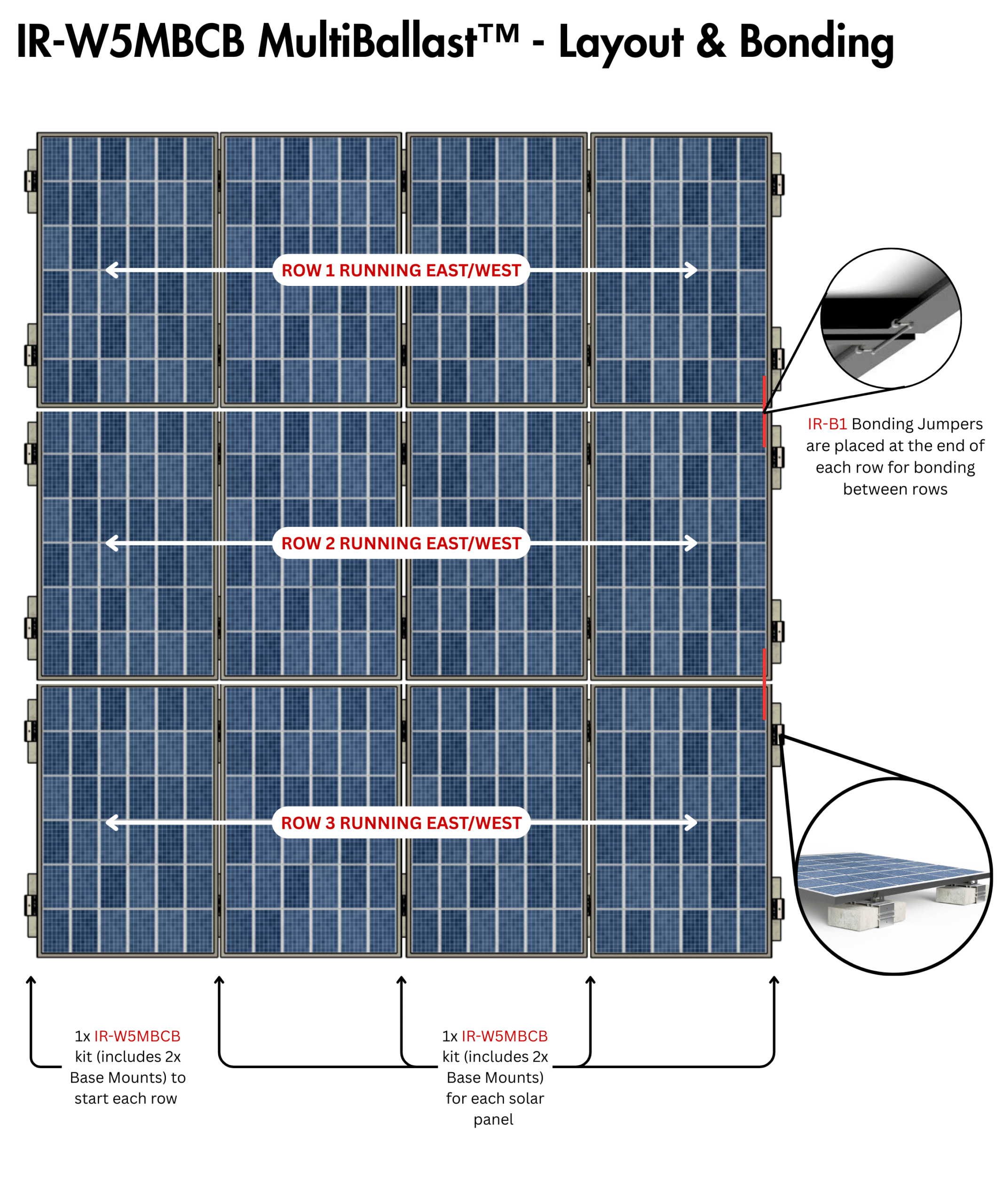

– How many kits do you need?
(Number of Solar Panels) + (Number of Rows) = (Number of Kits Needed)

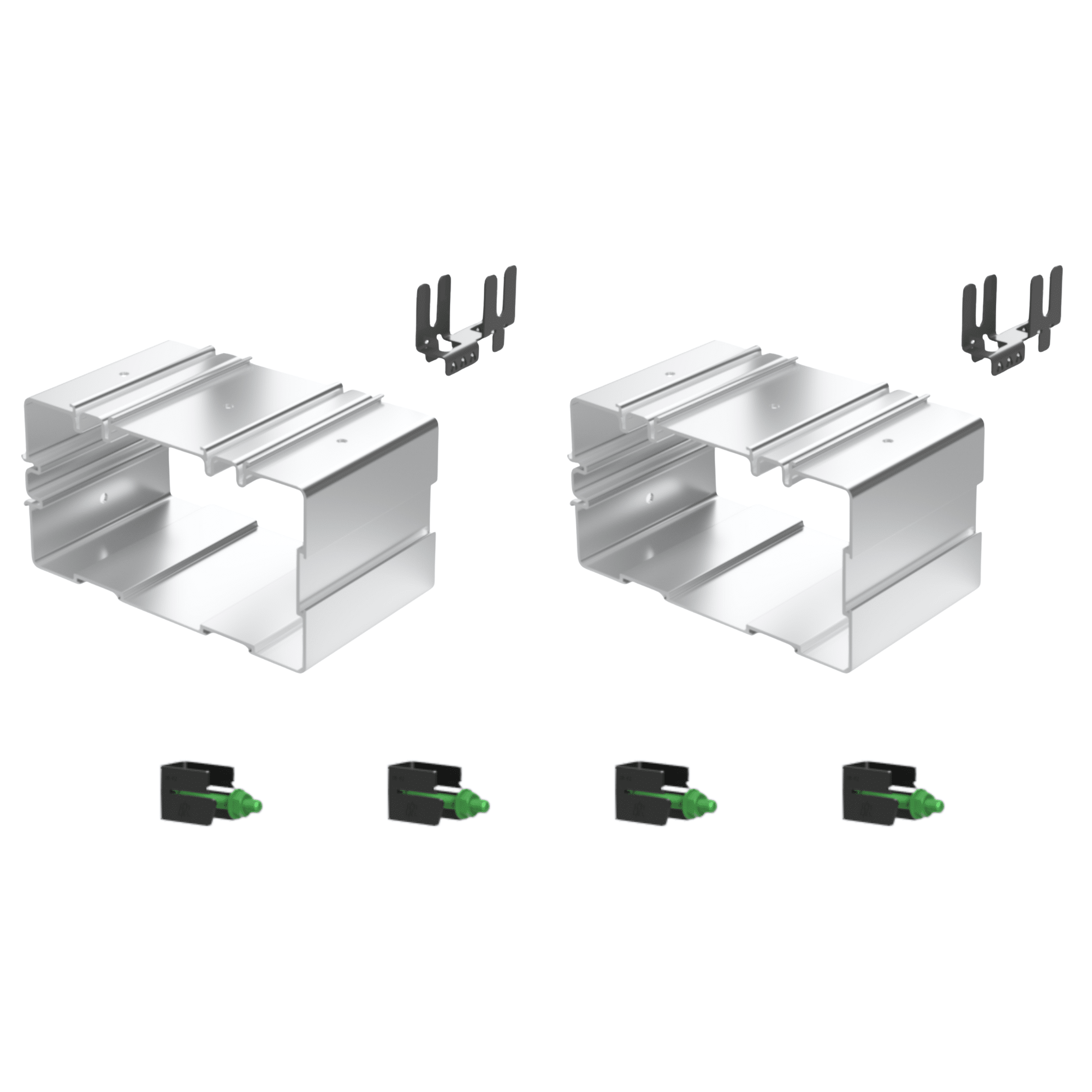

– What’s Included?
- 2x MultiBallast Base Mounts
- 2x H Module Mounting Brackets
- 4x IR-F2 Solar Module Flange Clamp Bonding Brackets
– What Is NOT Included?
- 1x standard CMU block required for the ballasting of each Base Mount
– What Tools are Required?
- 13mm ratcheting wrench for mounting solar panels
- Hammer for mounting H Module Mounting Brackets to the Base Mount
– Lightning Fast Assembly & Installation
- Each mount can be assembled in 10 seconds or less.
- Assembly only requires attaching the H Module Mounting Bracket to each Base Mount using a hammer (NO bolting required).
- Installation only requires sliding each Base Mount onto a common CMU block and placing it on the roof/ground.
– Strong, Simple Design
- Each Base Mount is cut from an extruded thick tube of aircraft grade aluminum.
- Rigid, boxed structure for incredible strength.
– Easy Solar Panel Mounting
- Mounting solar panels using the included IR-F2 Solar Module Flange Clamp Bonding Brackets is fast and easy.
- Each IR-F2 can easily drop into the open slot of the H Module Mounting Bracket and all you need to do is tighten the serrated nut with a 13mm wrench.
– Multiple Configurations

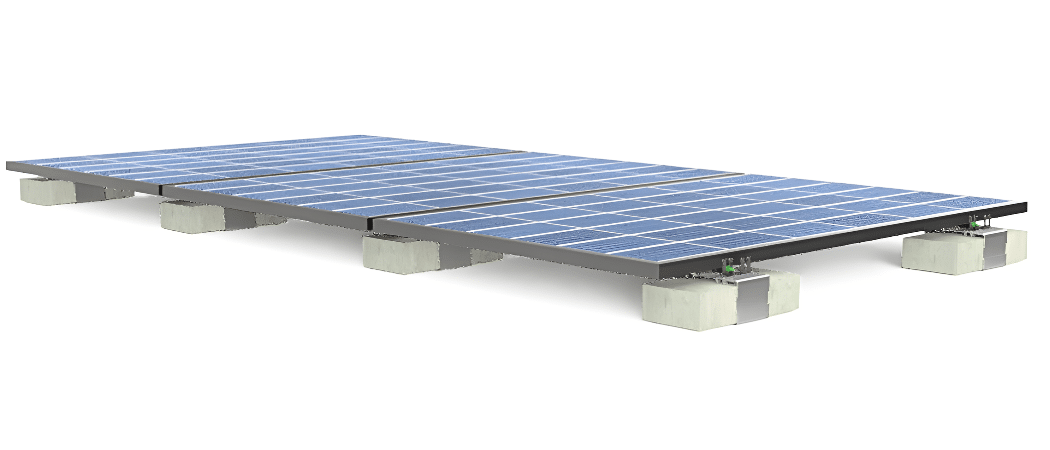

- 0° Flat Configuration (Lay all mounts flat)

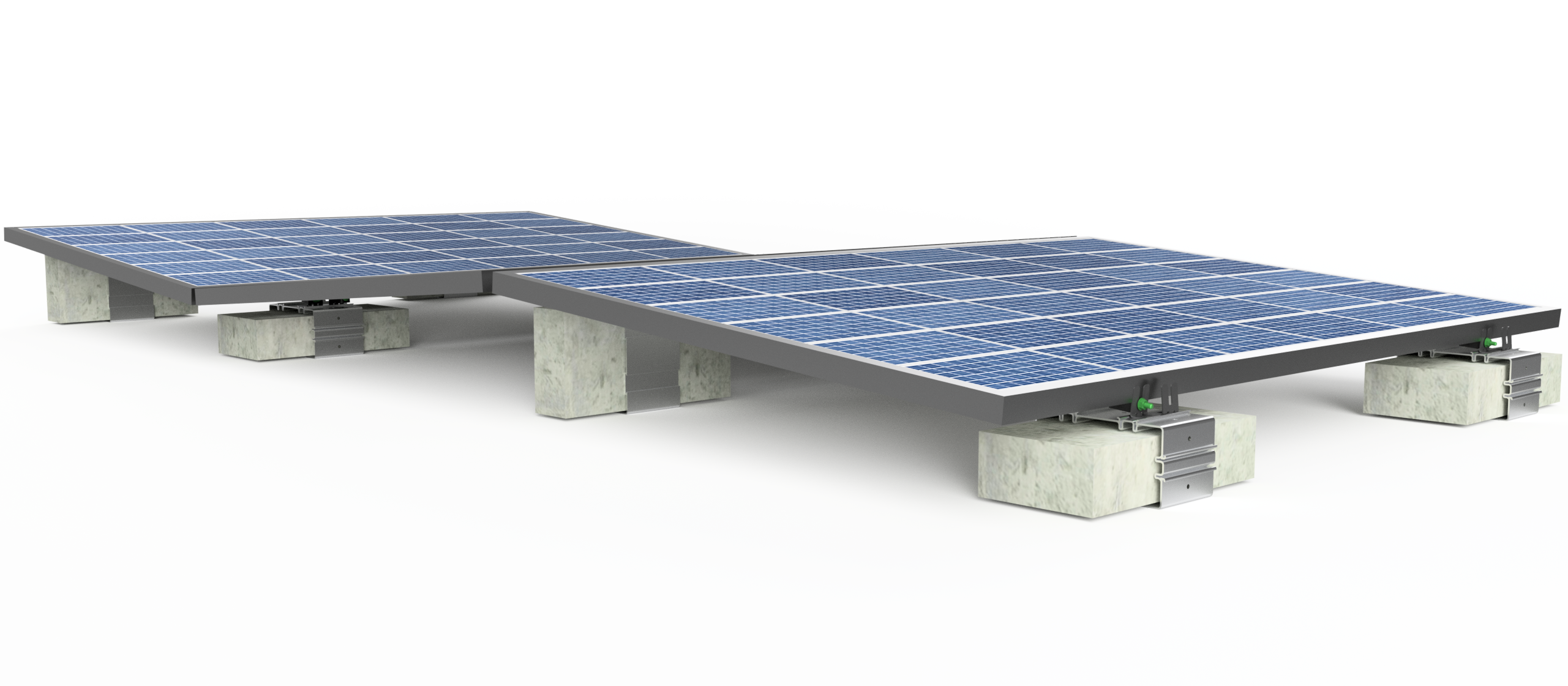

- 5° East/West ‘W’ Configuration (Rotate every other mount onto its side to raise the panels)
– UL 2703
This product conforms to UL 2703 Mechanical and Bonding requirements.
