IntegraRack IR MultiBallast Wind Spoiler

Description

IntegraRack IR MultiBallast™ Wild Spoiler

This 66″ long specially designed wind deflecting spoiler is meant to integrate directly with the MultiBallast system and span most of the length of any solar panel. Your desired MultiBallast configuration will determine the number of wind spoilers you need for each solar panel/row of solar panels, so below to find out how many you need. The MultiBallast Wind Spoiler is required for most South facing MultiBallast configurations and provides this system with unmatched wind ratings by preventing wind from getting underneath the solar panels and generating downforce at the back of the system (see IntegraRack’s Stamped Engineering & Datasheets).

*The Wind Spoiler is required for most MultiBallast configurations

How Many Wind Spoilers Do I Need?

• IR-W5MBCB (5° East/West): NONE

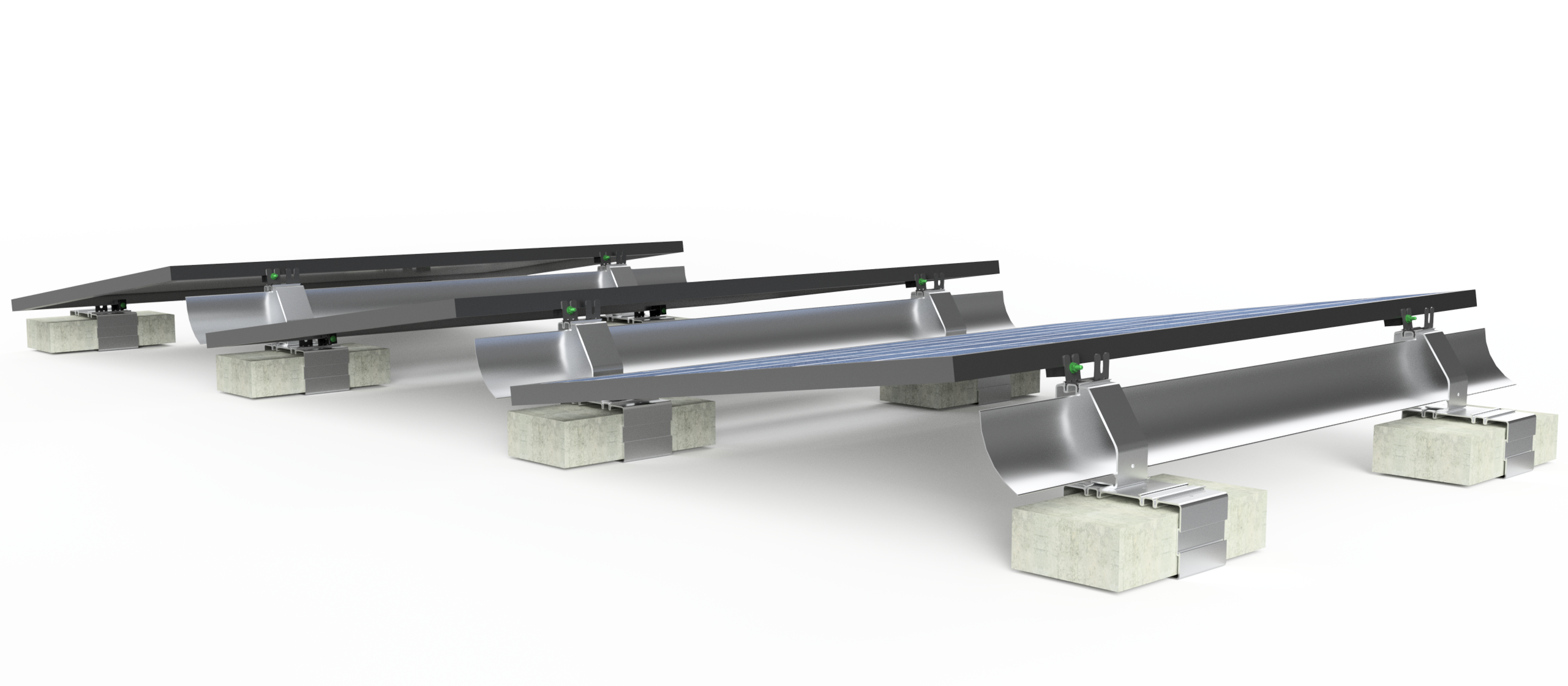

• IR-08MBCB (8° South): 1x Wind Spoiler Per Panel
• IR-13MBCB (13° South): 1x Wind Spoiler Per Panel + 1x Wind Spoiler Per Row of Panels

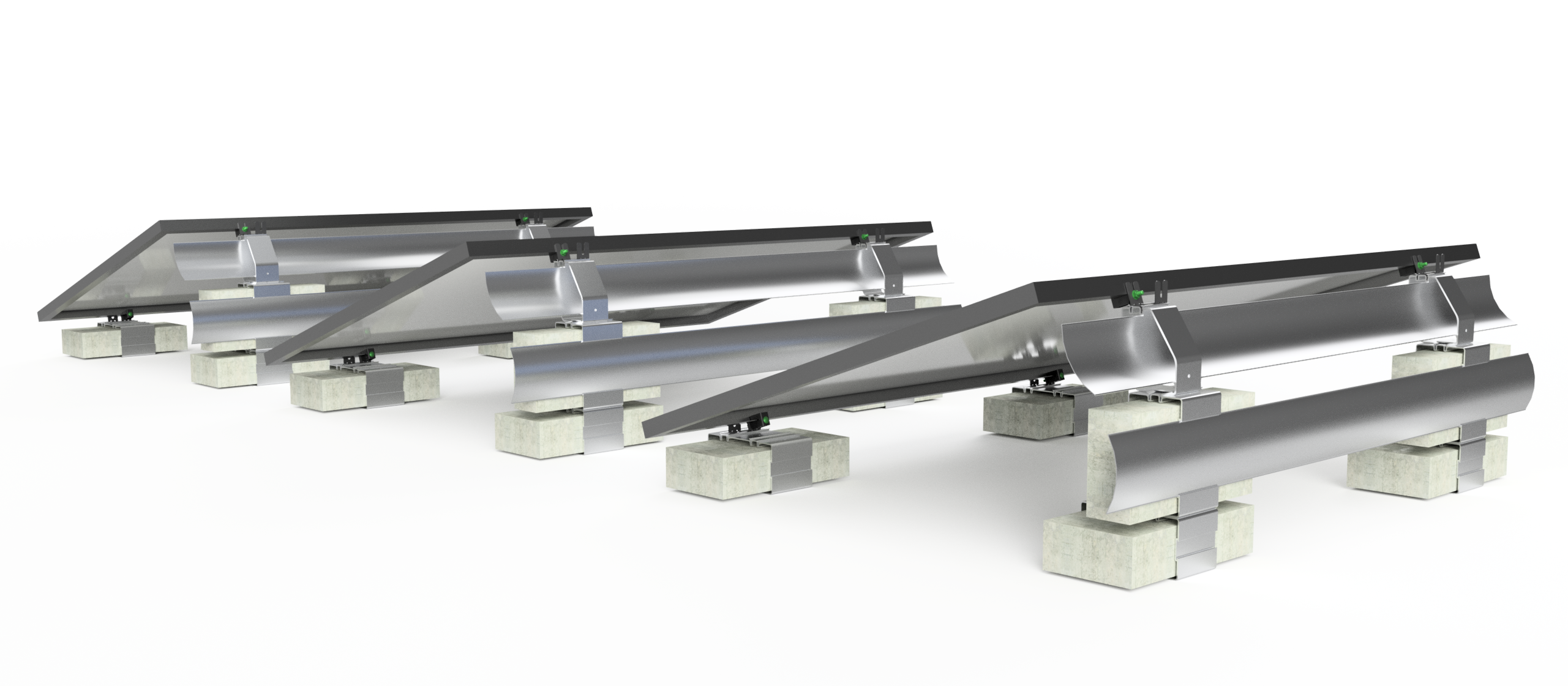

• IR-20MBCB (20-30° South): 2x Wind Spoilers Per Panel
