IntegraRack IR-T1 TileBallast™ No Penetration Tile Roof Mounting System

Description

IntegraRack® IR-T1 TileBallast™ No Penetration Tile Roof Mounting System

The IR-T1 is the first of its kind and the only tile roof hook that requires no removal of tiles and no roof penetration at all. The IR-T1 TileBallast™ System is 4x faster to install than traditional tile roof hooks and much stronger, since our proprietary installation system actually increases the overall strength of the entire roof structure. When installed using our test proven IntegraGel Fast Setting Industrial Strength Two Part Epoxy, each bracket uses the weight of the heavy concrete tiles which are nested and overlapping each other. The IR-T1 has been tested at the George E. Boeing Aeronautics Department Wind Tunnel and is proven to withstand over 165 MPH wind speeds with a 3:1 safety factor (See Datasheets & Engineering for more detailed ratings), making it the most extensively tested solar roof mounting bracket ever. One tube of IntegraGel Epoxy is good for up to ten mounts.

*IntegraGel sold separately. Click here for more info.

*Solar panel mounting rails and associated hardware are NOT included with this product.

*Only recommended for CONCRETE roof tiles with at least a 1 inch thickness. Compatible with any style of concrete tile with 11.75-15.5 inch spacing.

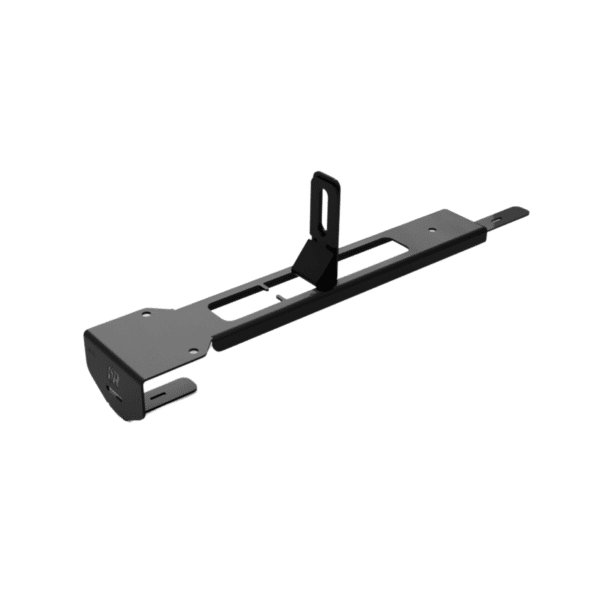

*Some photos show the old version of the IR-T1 with the upright as a separate piece. Please refer to main product photo for an accurate depiction of what product you are purchasing.

– Aeronautical Wind Tunnel Tested at 165 MPH with 3:1 Safety Factor

The IR-T1 TileBallast™ Roof Mount has been tested to withstand over 165 MPH with a 3:1 safety factor in the William E. Boeing Department of Aeronautics Wind Tunnel, making it the most extensively tested solar roof mounting bracket ever.

Click HERE to see IntegraRack’s Stamped Engineering & Datasheets

– Phoenix National Laboratories Hydraulic Load Tested for Wind and Snow Load Simulations

The IR-T1 has been rigorously tested by Phoenix Nationals Laboratories with multiple simulated wind and snow load hydraulic tests. This outdoor lab testing shows that the IR-T1 can withstand almost 200lbs of direct uplift and over 900lbs of direct compression per mount, allowing for a 3:1 safety factor with 165 MPH winds.

– No Tile Removal and No Roof Penetration

The IR-T1 is the first tile roof hook that is 100% non-invasive, and its no penetration design along with our patent pending bonding method actually increases the strength of the entire roofing system. No roof warranty issues to deal with, and a huge selling point for homeowners to go solar without worrying about a leaking roof after the solar installation is complete.

– For Use With All Rail Systems

The integrated upright allows for the mounting of any rail system like any standard tile hook, and the two piece design creates a very strong support and is much more solid than traditional tile roof hooks.

– Lightning Fast Install

With its 100% non-invasive design, installation times are 4x faster than traditional tile roof hooks. The IR-T1 is by far the fastest and strongest tile roof hook available today.

– Innovative Engineering

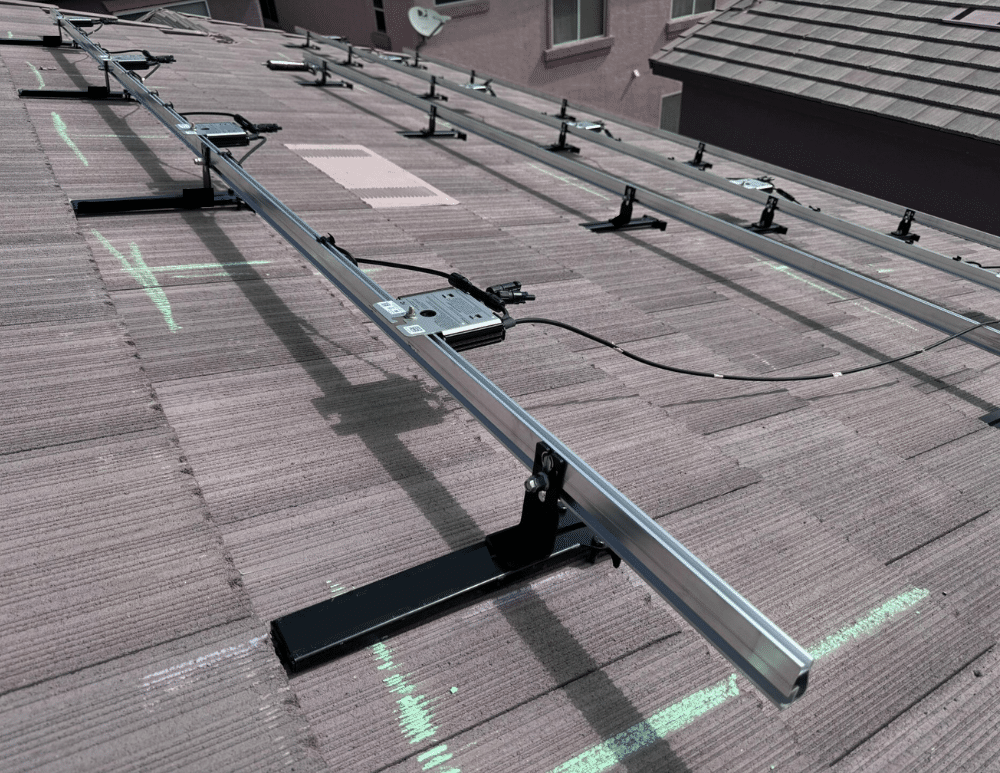

The IR-T1 utilizes a super high-strength tested concrete adhesive system to bond three roof tiles together along with the IR-T1’s two integrated mounting hooks bonded as one piece. This unique system creates a large heavy ballasted foot out of the three concrete roof tiles, and these bonded roof tiles are also held down and nested in place by five additional overlapping tiles.

– IntegraGel Epoxy

IntegraRack’s IntegraGel is a fast-setting industrial strength epoxy that is perfectly designed to quickly bond tiles together around each mount and create a large ballasted foot out of the heavy concrete tiles, increasing the structural integrity of the roof in the process. Each tube of IntegraGel includes a self-mixing nozzle and can be used with any standard caulk gun to install up to ten IR-T1 mounts.

– UL 2703

This product conforms to UL 2703 Mechanical and Bonding requirements.

Additional Info

Click HERE for additional Product Info, Instructional Videos, Warranty Coverage, Datasheets, Testing & Engineering for the IR-T1 TileBallast.

Are you a licensed solar installer?

Click HERE to apply for our Authorized Dealer/Installer program to see if you qualify for discounted pricing and referrals.

*DISCLAIMER

IntegraRack products are in very high demand and may take 5-7 business days to ship. Most orders ship within 24 hours.
